幅650mm純粋で柔らかい銅ホイル シート ロール
35um銅ホイル シート ロール
,70um銅ホイル シート ロール
,70umは銅ホイルを転がした

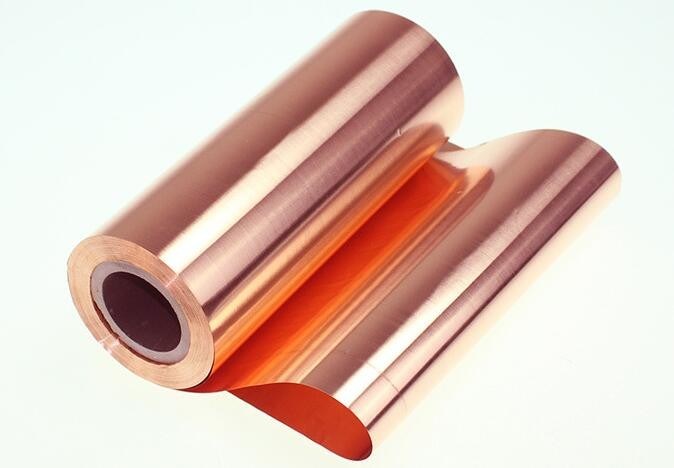

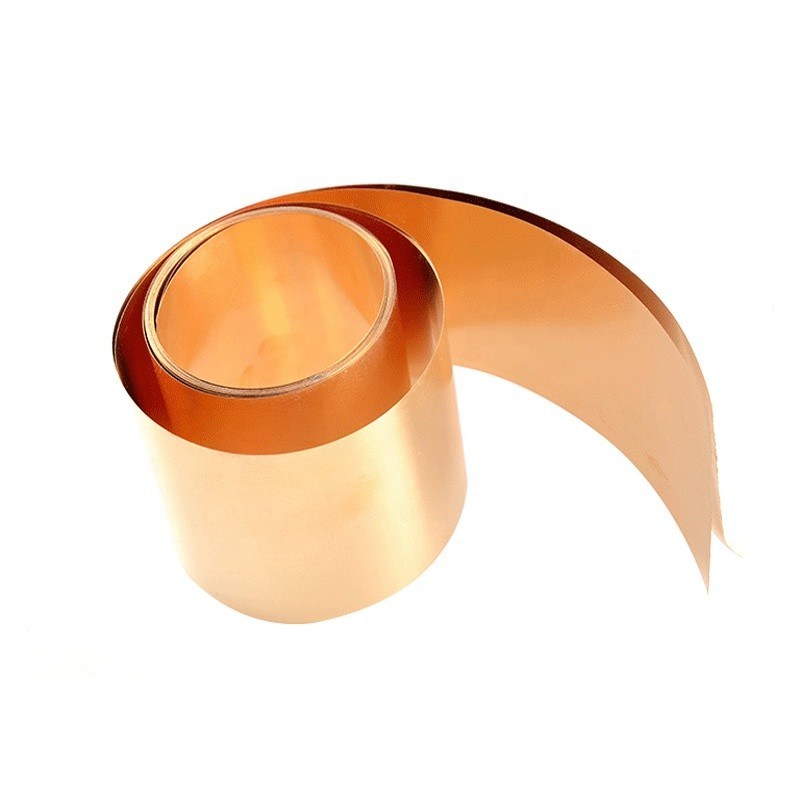

幅650mm純粋で柔らかい銅ホイル シート ロール
製品の機能:
1. 材料を保護するElectomagneticのため
2.低い荒さ
3. 優秀な延長の特性
4.優秀な酸化抵抗
5. プロダクトはROHSの環境基準まである
適用分野
大気および宇宙空間、医療器具および器械、通信システムおよび携帯用電子プロダクト、等。
データ:
| 項目 | 単位 | 条件 | テスト方法 | ||||
| 10um | 18um | 35um | 70um | ||||
| 基本重量 | g/m2 | 84.6-92.6 | 152.0-166.4 | 295.6-323.6 | 591.2-647.2 | GB/T29847-2013 | |
| 幅の正確さ | mm | ±1.5 | GB/T 26303 | ||||
| 純度 | CU | % | ≥99.95 | GB/T 5121 | |||
| 表面 荒さ |
RA | um | ≤0.32 | GB/T29847-2013 | |||
| 抗張 強さ |
RM | n/mm2 | ≥103 | ≥130 | ≥150 | ≥180 | GB/T29847-2013 |
| 延長 | A50 | % | ≥4.0 | ≥6.0 | ≥10.0 | ≥12.0 | GB/T29847-2013 |
| 酸化 抵抗 |
部屋 温度 |
日 | 180 | ||||
